Fractal Introduces New Era 2 SFF PC Case

fractal era2 2 fractal era2 2

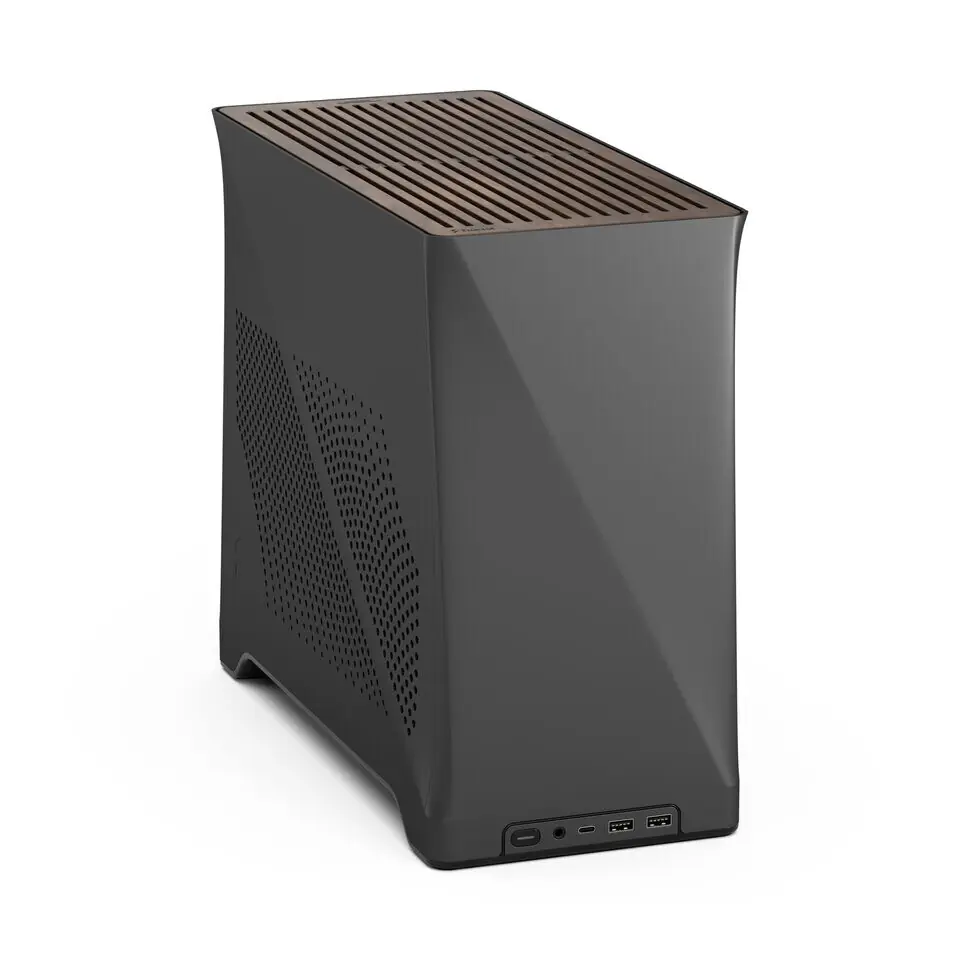

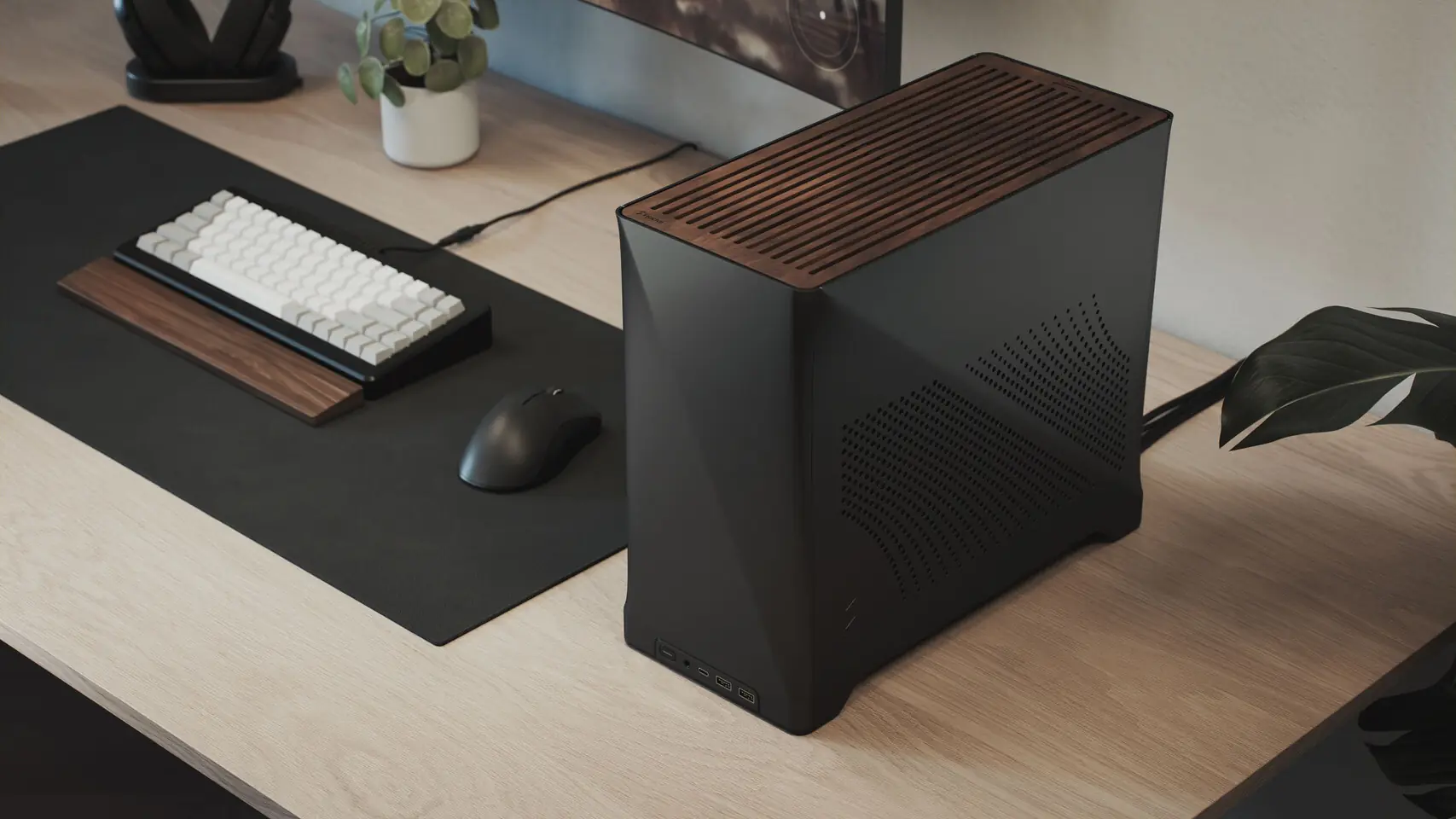

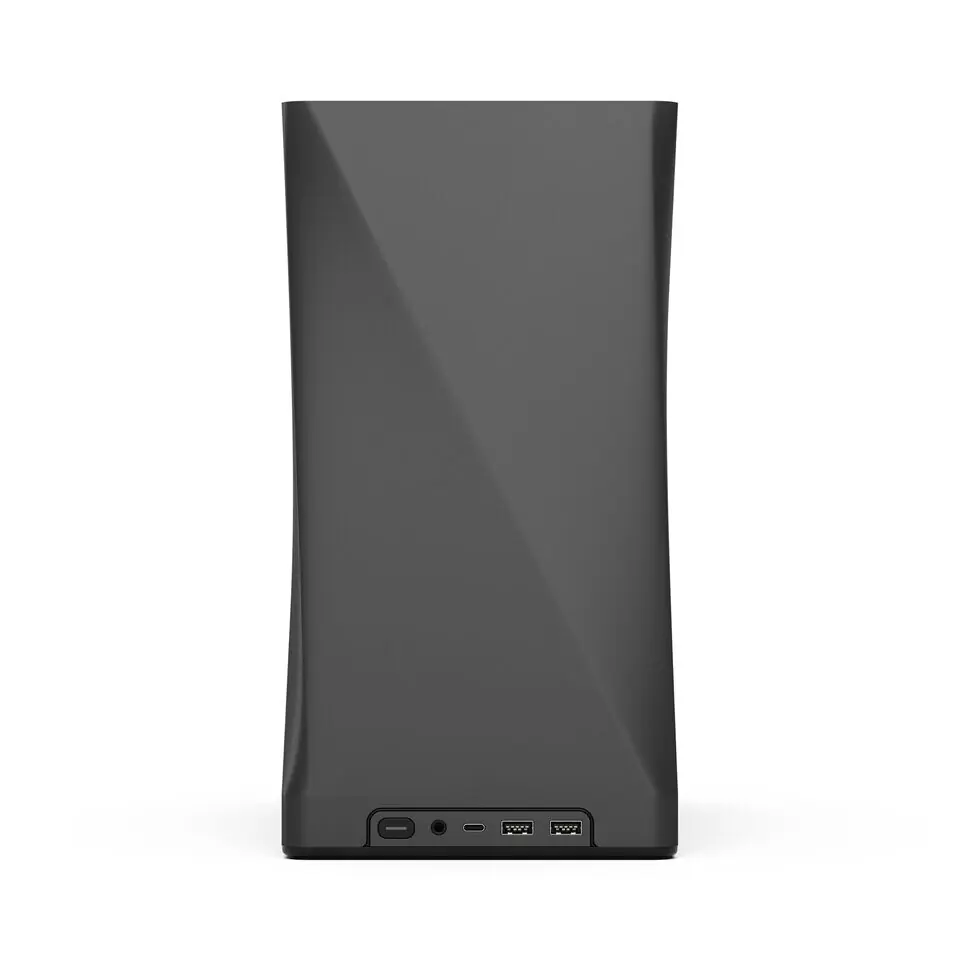

Presenting the release of Era 2 – the evolution of our iconic small form factor case, melding design innovation with engineering prowess. Era 2 refines the distinctive architectural design of the series and improves on its cooling capability for a smoother gaming experience. It features a tactile top panel made with solid, FSC-certified walnut and an outer body crafted from anodized aluminium. Both panels are ventilated for better performance and are easy to remove. The top panel is magnetically fastened and the outer body simply slides off.

fractal era2 1

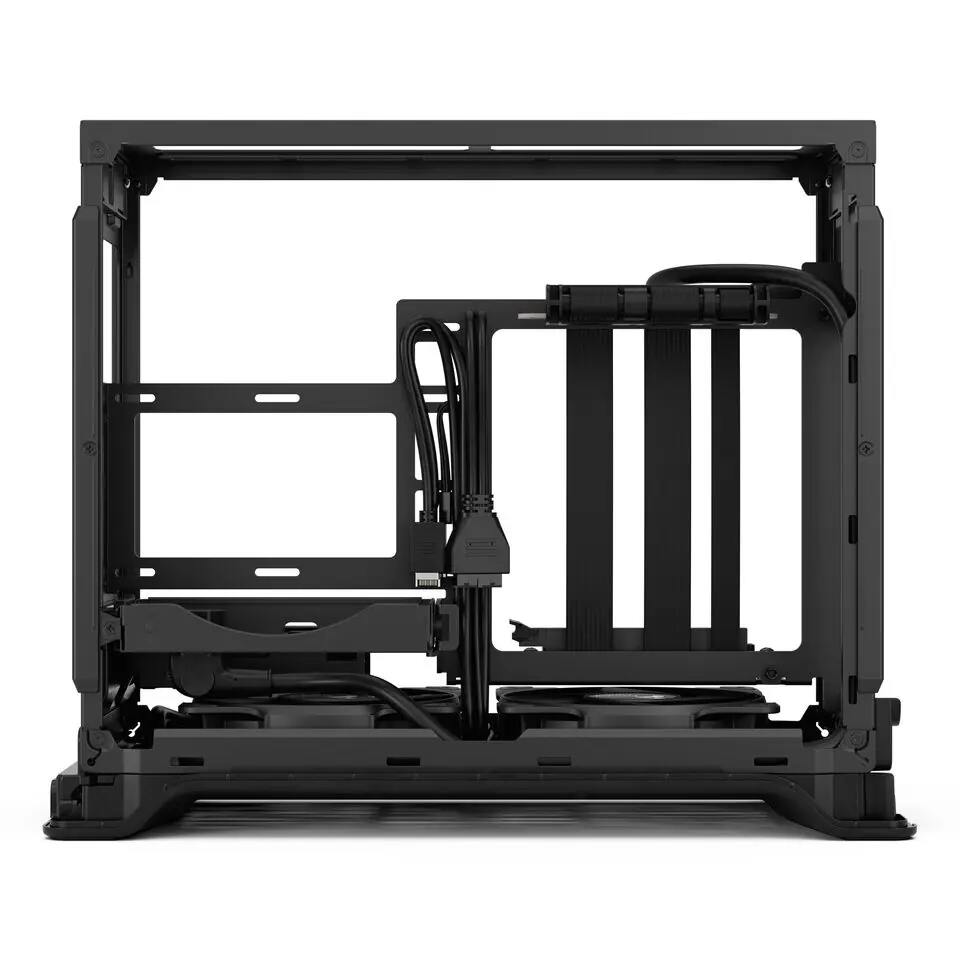

On the inside, a tool-less sliding latch mechanism allows swift removal and reseating of the top bracket. This gives smart access to an open interior with space for a powerful three-slot GPU on one side and CPU cooling on the other. It also features a slidable central wall that adds 15 mm of internal flexibility, allowing builders to find the optimal ratio between each side of their system. To boost thermal performance, Era 2 is engineered to direct airflow through the case. It comes with two pre-installed Aspect 12 PWM fans, features ample ventilation throughout the case and is ideal for water cooling using a top radiator, to help enable a premium gaming experience in a streamlined format.

fractal era2 3 fractal era2 4 fractal era2 5 fractal era2 6

Specifications

  • 3.5″/2.5″ drive mounts – 0 total, 0 included
  • Dedicated 2.5″ drive mounts – 4 total, 4 included (2 on motherboard wall)
  • 5.25″ drive mounts – 0 total, 0 included
  • Expansion slots – 3
  • Motherboard compatibility – ITX
  • Power supply type – SFX / SFX-L
  • Front interface – 1x USB 3.2 Gen 2×2 Type-C, 2x USB 3.0, Audio
  • Total fan mounts – 4 x 120 or 2 x 120 and 2 x 140 mm (2×120 mm Aspect PWM fans included)
  • Top fan – 2 x 120 mm or 2 x 140
  • Bottom fan – 2 x 120 mm
  • Dust filters – Bottom
  • Top radiator – Up to 315 x 140 mm with total thickness ≤ 52 mm, Up to 300 x 140 mm with total thickness ≤ 58 mm
  • GPU max length – 326 mm
  • GPU max Height – 137 mm
  • GPU max thickness – 48-63 mm (depending on motherboard wall position)
  • CPU cooler max height – 55-70 mm (depending on motherboard wall position)
  • Cable routing grommets – No
  • Fixed velcro straps – Yes (2 included)
  • Captive thumbscrews – PCI-e Blanks
  • Panels – Aluminium
  • SFF-Ready Enthusiast GeForce Cards – Yes
