AMD’s Ryzen 9000 series processors have launched recently and that means we have a whole slew of new AMD motherboards. The cool thing is all of these boards feature AMD’s AM5 socket so if the new 9000 series processors are not your thing, you can still slot in a Ryzen 7000 series chip if you want. For the new chipsets we have X870E and X870. The real difference between these two is that X870E features two Promontory 21 chips which are going to give you more PCIe lanes. This is what makes X870E-based motherboards more expensive than X870. X870 boards are no slouch though, they are still going to have features like PCIe 5.0 for graphics and storage, USB 4, and lots of M.2 slots. Honestly for most people an X870 motherboard will be more than enough and they can take that savings and put it towards a better graphics card or faster storage. Today we are taking a look at the Gigabyte X870 AORUS Elite WiFi7 Motherboard. Being in the AORUS line it sits in the middle of Gigabyte’s product stack. With this board you are going to get a digital twin 16+2+2 phase VRM solution, support for DDR5, WiFi 7, four M.2 slots, dual USB4 ports, as well as ease-of-use things like Gigabyte’s EZ-Latch Plus and EZ-Latch Click. Read on as we take a look at this board!
Special thanks to Gigabyte for providing us with the X870 AORUS Elite WiFi7 Motherboard to review.
Features of the Gigabyte X870 AORUS Elite WiFi7 Motherboard
– AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
– Digital twin 16+2+2 phases VRM solution
– Dual Channel DDR5：4*DIMMs with AMD EXPO Memory Module Support
– WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
– EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
– EZ-Latch Click：M.2 heatsinks with screwless design
– Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
– Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
– Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
– Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
– Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
– Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
– Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
– Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
– PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
Gigabyte X870 AORUS Elite WiFi7 Motherboard Packaging
The X870 AORUS Elite WiFi7 comes in the standard Gigabyte motherboard box. On the front we have the AORUS logo and it lets us know the board features the AM5 socket.

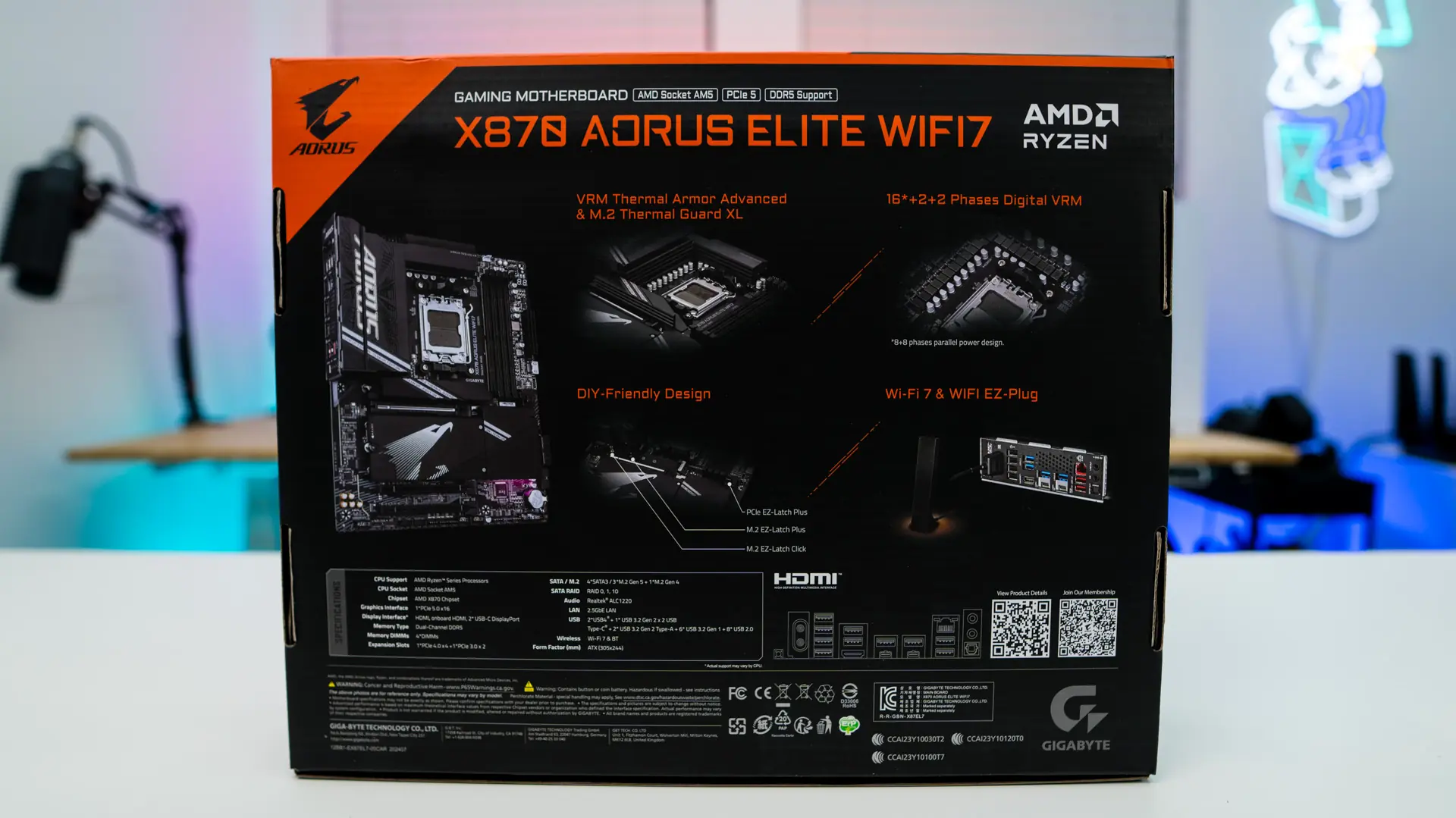

Flipping the box over to the back some of the main features are detailed, we have a full list of specifications, as well as a run-down of our rear I/O ports.
As far as accessories go you have the WiFi 7 antenna, a set of SATA cables, G-connector, an AORUS case badge, and your user’s guides. G-connector. The G-connector allows you to plug in all of your front panel cables to it, and then easily plug it into the front panel headers on your motherboard.
